Circuit Lab
Prompt
An online circuit laboratory for middle school physics classes (1440×900, used on classroom computers and all-in-one displays), with a Chinese interface: drag batteries, bulbs, switches, resistors, and ammeters from the equipment box onto the workbench and connect them with wires.
Closing the switch is the core: current flows along wires, bulbs brighten and dim realistically in series and parallel circuits, and the ammeter readings change accordingly. In a short circuit, the wire glows red and sparks, and the interface points out the incorrect connection. Generate equipment imagery with realistic materials, keeping the lighting direction and viewing angle consistent across the set.

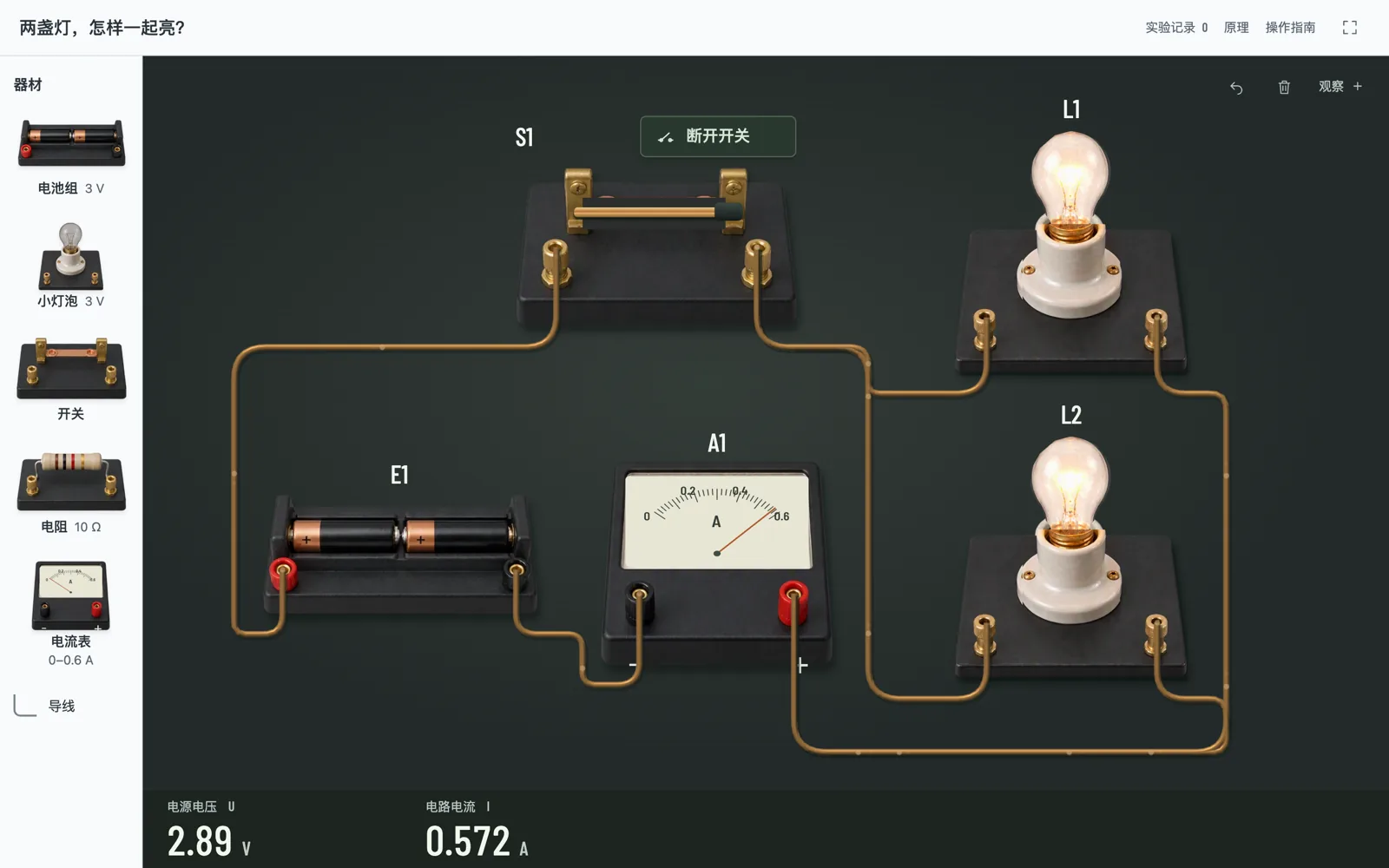

Design three states: an experiment task with an empty workbench; a completed series circuit with the switch closed; and a parallel circuit or a short circuit.
View Chinese original
一个给初中物理课用的在线电路实验室（1440×900，在教室电脑和一体机上用），界面用中文：从器材盒把电池、灯泡、开关、电阻、电流表拖到实验台，用导线连起来。
合上开关的那一下是这件作品的核心：电流沿导线流动，灯泡按串联、并联真实地变亮变暗，电流表读数跟着变；接成短路时导线发红、冒火花，并指出是哪里接错了。器材用生图做出真实材质，同一批统一光向和视角。
设计三个状态：一道实验任务和空实验台、搭好串联电路后合上开关、改成并联或接成短路。
